Feature
Feature of small size cnc router:
♦ 400x400x80mm working size
♦ 1.5 kw water cooling spindle
♦ T-slot vacuum working table
♦ NC Studio controller
♦ Stepper motor and drive
♦ Beta interver
♦ ArtCam software
Option:
♥ Vacuum System
♥ Dust Collector system
♥ AC Servo motors
♥ HSD Spindle
♥ Rotary Axis
Advantage of small size cnc router:
♦ Economy cnc router machine professional for advertising design.
♦ 1.5 kw water cooling spindle with 24000r/min.
♦ NC studio Controller ;handle operation ;dustproof design,is very convenient.
♦ Low price and portable
Technical Parameters:
NO.
|
Items
|
|
Parameters
|
Option
|
1
|
Working Area
|
XYZ
|
400*400*80mm
|
≤500mm
|
3
|
Table Type
|
|
T-slot aluminum table
|
vacuum table
|
4
|
Accuracy
|
Working Accuracy
|
±0.03/300mm
|
|
Repositioning Accuracy
|
±0.02/300mm
|
|
6
|
Drive system
|
X,Y with Rack and Pinion Z with lead screw
|
|
7
|
Speed
|
MAX Traveling Speed
|
32000mm/min
|
|
MAX Working Speed
|
15000mm/min
|
|
8
|
Spindle
|
Spindle Power
|
1.5 KW water cooling spindle
|
Italian HSD Spindle
|
Spindle Speed
|
0-24000r/min
Stepper
|
Servo
|
10
|
Drive and Motor
|
12
|
Working Voltage
|
|
AC380V/50Hz
|
AC220V/60Hz
|
14
|
Operating System
|
|
March 3
|
NC Studio
|
15
|
Net Weight/Gross Weight
|
|
200KG/250KG
|
|
16
|
Packing size
|
|
1000*1000*1000mm
|
|
Benefits of small size cnc router:
the application of this cnc router machine:
♥ Advertising indusries:Logo design,advertisng board,DIY,plastic,acrylic cutting...
♥ Decoration industries: wave boards,sign making,decorations...
♥ Arts & Crafts industries: Engrave on artificial woods, bamboos, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
♥ Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards,organic glass, plastics and soft metal sheets such as copper and aluminum.
Quality test small size cnc router:

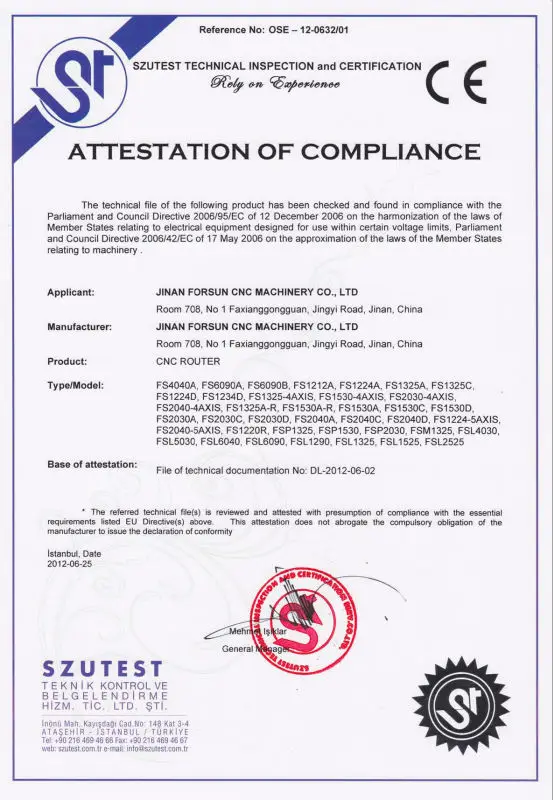

Company Certification:

Customer in our factory from all over the world:
|
